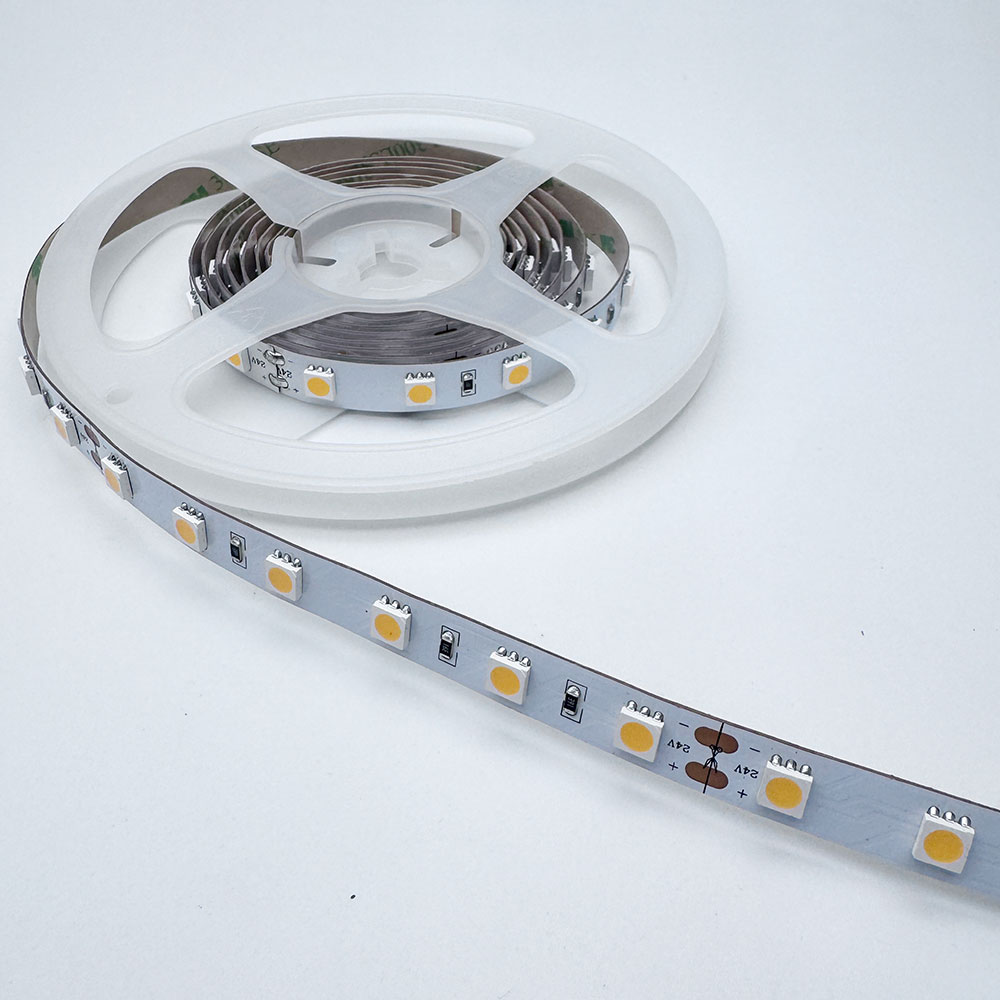

Standard products - PRF 5050 led strips - UVC light

．5M per reel

．Width of Strip: 10mm
．300pcs 5050LEDs per Reel
．6 LEDs per cutting unit
．Unit length: 100mm
．Weight：105g
．LED Life time: Mean time between failure (MTBF): 50K – 100K hours
．Storage temperature: -20 ℃ ~ +60 ℃
．Humidity: 40% ~ 70% R
．Operating temperature: -20 ℃ ~ +45 ℃
．ThreeYear Warranty

P5050C60A12/24-W10	White	1200lm	60	6000K-7000K	DC24V	0.6A	14.4W	120°
P5050W60A12/24-W10	Warm White	1080lm	60	3000K-3500K	DC24V	0.6A	14.4W	120°
P5050B60A12/24-W10	Blue	100lm	60	465nm-475nm	DC24V	0.6A	14.4W	120°
P5050G60A12/24-W10	Green	330m	60	515nm-525nm	DC24V	0.6A	14.4W	120°
P5050R60A12/24-W10	Red	300lm	60	620nm-630nm	DC24V	0.6A	14.4W	120°
P5050Y60A12/24-W10	Yellow	220lm	60	585nm-595nm	DC24V	0.6A	14.4W	120°

1. Tolerance of measurement of luminous intensity is ±10%
2. The dominant wavelength λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
3. Specifications are subject to change without notice.
