LED Strip SMD2110 &COB STRIP LIGHT (NEW)

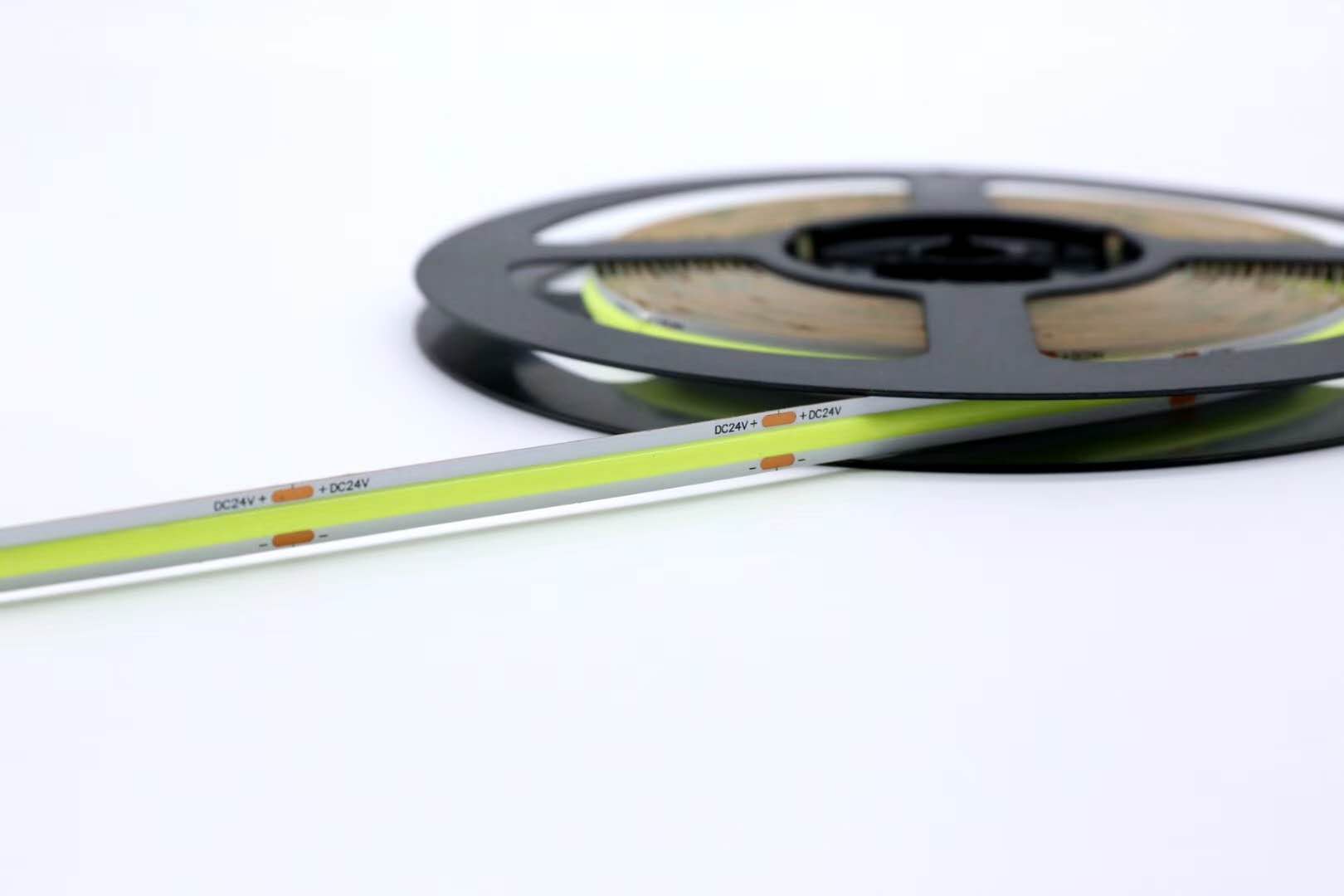

COB strip
The Strip minimum thickness of the PCB 0.3mm (the PCB has to be locked on the molex connector)and it has to make the correct contact between PCB and contacts of the molex connector: (Molex 522070360 )- Design without resistor Vin 42V - 80mA
- CRI 95
- 3 step MacAdam
- Total length 500mm
|
Part No. |
Color |
Luminous Flux/M |
LED qty/ Meter. |
Energy efficiency class |
Operating Voltage |
Nominal Current (meter) |
Nominal Power (meter) |
View Angle |
||||
|
PS2110W120S42V-W04 |
Nature White 4000k |
340 lm |
240 |
G |
DC42V |
0.8A |
3.56W |
120° |
||||
|
PS2110L120S42V-W04 |
Warm White 3000k |
325 lm |
240 |
G |
DC42V |
0.8A |
3.56W |
120° |
||||
|
PS2110H120S42V-W04 |
Warm White 2700K |
312 lm |
240 |
G
|
DC42V |
0.8A |
3.56W |
120° |
||||
1. Tolerance of measurement of luminous intensity is ±10%
2. The dominant wavelength λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
3. Specifications are subject to change without notice.
4. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity. Constant Current Power Supply 80MA ,DC42V.
Installation
drawing
