Sensor light(rigid bar/solar light)

PR2835CW72A24-W30

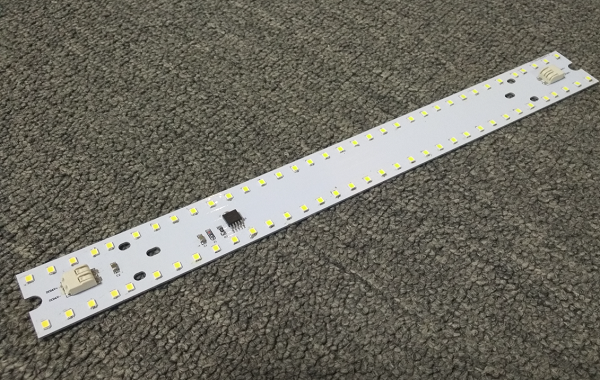

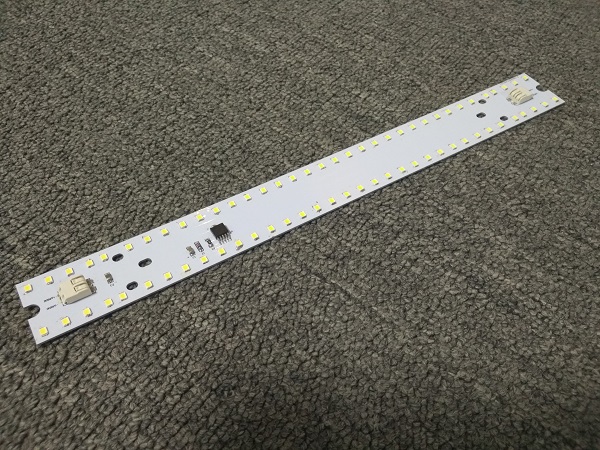

The Strip is made by Rigid Circuit Board and 2835 LED Single Chip.
Also it is high efficiency design and fast connect for installation, you could connect them easily at required quantity for your project. The strip has single color (include: Cool White, Natural White, Warm White).
The Strip is passed CE,ROHS. Suitable for indoor lighting application.

分享按钮

Product Description

Product Features:

Input voltage: DC 32V-37V

300mm per piece

72 leds per reel

12 LED per small Unit

LED Life time: 50K hours at 55℃

Storage temperature: -30℃ ~ +80℃

Humidity: 40% ~ 70% R

Operating temperature:-20 ℃~ +50 ℃

IP Rate: IP 20

CRI>80

Three Years Warranty

IES and Integrating sphere test report available

Light Source: 2835 SMD LED

2, Product Information:

Part No.	Color	Luminous Flux/pc	LED qty/ piece.	Dominant Wavelength λd		Operating Current	Max power (meter)		View angle
PR2835CW72A24-W30	Cool white	1300lm	72	6000k-6500k	DC32-37V	0.25A/m	9W	120
PR2835NW72A24-W30	Nature White	1270lm	72	3700K-4300K	DC32-37V	0.25A/m	9W	120
PR2835WW72A24-W30	Warm White	1200lm	72	2800K-3100K	DC32-37V	0.25A/m	9W	120

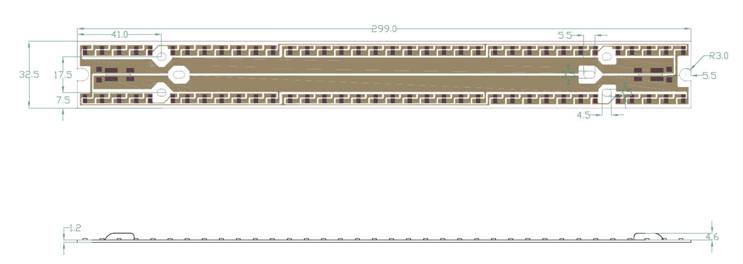

3 Dimension Drawing
