Current Location: Home » Products » LED Strips Connector » IP20/IP65 DIY connector


LED Strips Connector

IP20/IP65 DIY connector

NEW DIY

8mm&10mm wide single color flex led strip,IP20,IP55,IP65/IP66

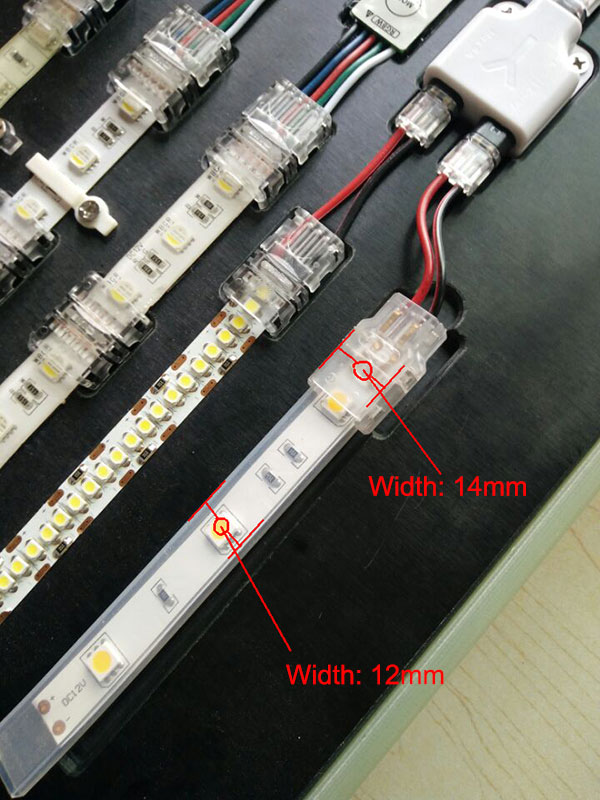

Dimension (without wire)  : L26*W14*H6 mm






分享按钮
Product Description

Product Description:


Features

  1. 1.Safer while working with separated wire channel design which can avoid short connecting.
  2. 2.With notch for first LED which allow it work with high density led strip perfectly. For example, 120LEDs/Meter.
  3. 3.Ultra slim design which is possible to work inside aluminum led strip profile or other narrow space

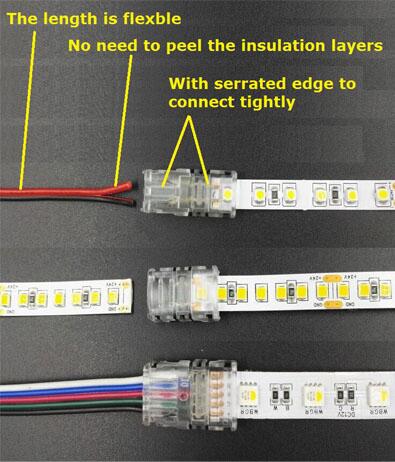

  4. 4.Easy to use with solderless connecting concept.
  5. 5.Keeping cool while working under big current.
  6. 6.UL94V-0 flame retardant rating material
  7. 7.Wide and full metal contacting area to led strip soldering pad
  8. 8.Solid fixing to led strip with innovative back lock design

Technical Data

Product Name LED Strip connector
Application Strip to Power,strip to strip
Working Voltage DC3V-24V
Max Current 6A
Pin Quantity 2 pins ,3Pins, 4 Pins
Wire Length 15CM
Wire Standard 18-22AWG
Wire Color Zebra & white or Black & Red available
LED strip matched 8mm&10mm wide single color flex led strip,IP20,IP55,IP65/IP66
Material NyLon66 & Copper
Flame Retartant Level UL94v-0
PCB Width 8mm &10mm
Dimension (without wire) L26*W14*H6 mm
