LED Strip Light

P560B-24

Product Details:

Place of Origin: Guangdong China(mainland)
Brand Name: PREFER LED
Certification: CE/ROHS
Model Number: P5050W60A12/24-W10
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Delivery Time: 7-10 days
Payment Terms: T/T
Supply Ability: 500,000m per month

分享按钮

Product Description

Product Description

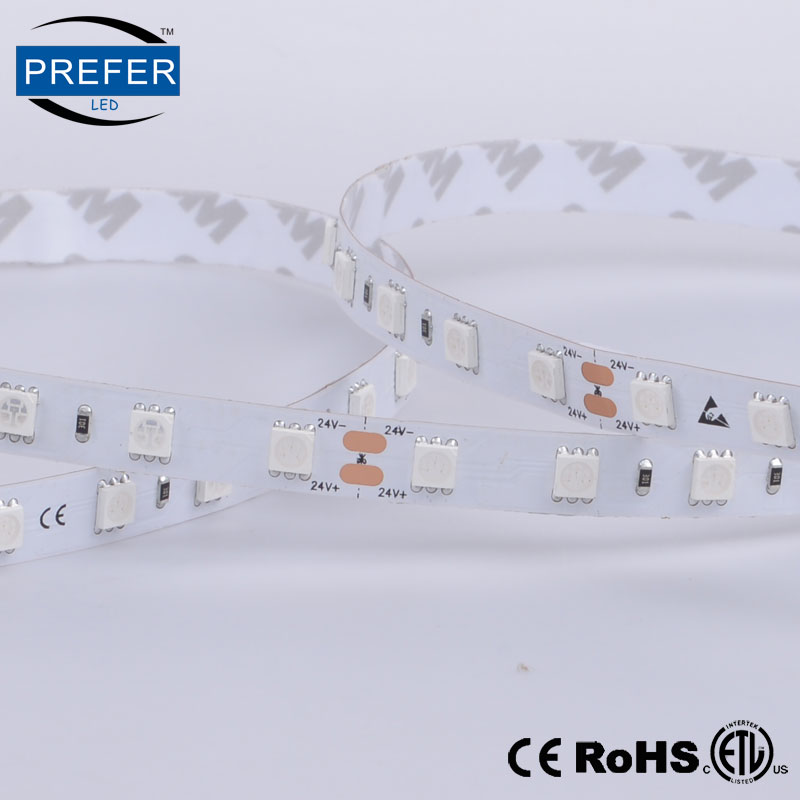

The Strip was made by Flexible Printed Circuit Board and 5050 Top LED. The LED is even, large and high brightness lighting effect. Also it is soft and easy bended for installation. The cutting unit is 50mm and 3 pieces LED per group, so you could cut a different length for your project and request. The strip could have six single colors (included: White, Warm White, Blue, Green, Red & Yellow). The Strip is working on 12V/24V DC and passed CE EMC testing. Suitable for both indoor & outdoor decorative application.

Product Features

．5M per reel
．Width of Strip: 10mm
．300pcs 5050LED with three Chips per Reel
．3 LED per small Unit
．Unit length: 100mm
．Weight：125g
．LED Life time: Mean time between failure (MTBF): 50K – 100K hours
．Storage temperature: 0 ℃ ~ +60 ℃
．Humidity: 40% ~ 70% R
．Operating temperature: -20 ℃ ~ +45 ℃
．Two Year Warranty

Product Information:

Part No.	Color	Luminous Flux/M	LED qty/ Meter.	Dominant Wavelength λd	Operating Voltage	Nominal Current (meter)	Nominal Power (meter)	View Angle
P5050C60A12/24-W10	White	1200lm	60	6000K-7000K	DC24V	0.6A	14.4W	120°
P5050W60A12/24-W10	Warm White	1080lm	60	3000K-3500K	DC24V	0.6A	14.4W	120°
P5050B60A12/24-W10	Blue	100lm	60	465nm-475nm	DC24V	0.6A	14.4W	120°
P5050G60A12/24-W10	Green	330m	60	515nm-525nm	DC24V	0.6A	14.4W	120°
P5050R60A12/24-W10	Red	300lm	60	620nm-630nm	DC24V	0.6A	14.4W	120°
P5050Y60A12/24-W10	Yellow	220lm	60	585nm-595nm	DC24V	0.6A	14.4W	120°

1. Tolerance of measurement of luminous intensity is ±10%
2. The dominant wavelength λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
3. Specifications are subject to change without notice.
4. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
5. White: 6000-7000K / 7000-9000K; Neutral White: 3800-4400K; Warm White: 2700-3000K / 3000-3500K;
Blue: 465-475nm; Green: 515-525nm; Red: 620-630nm; Yellow: 585-595nm.

Applications
．Avertising Panel
．Demonstration Cabinet
．Walkways and Stairways Lighting
